This machine is suitable for all metal sheets and mirrors(has metallic materials) and can engrave any pattern on the surface of the material. Our company machine software adopts a professional imported software, which has the function of automatic adjustment of engraving circle and engraving square. The working movement mode is a 5-axis linkage, the engraving speed is fast, the dots are fine and uniform, and the drawn patterns are perfectly connected.
The Y-axis accuracy can be controlled within 0.3MM, and the X-axis accuracy can be controlled within 0.5MM. The software of the whole machine is easy and flexible to operate.
Specifications
| Model | Splicing System MCHLX122450W | Linkage System MCHLX122450W Plus | Linkage System MCHLX1224100W | Linkage System MCHLX1224140W | ||
| Power | 50 Watt | 100 Watt | 50 Watt | 100 Watt | 100 Watt | 140 Watt |
| Workable | Mirror | Mirrow & Low-E Glass | Mirror | Mirrow & Low-E Glass | Mirrow, Low-E Glass & Stainless steel | Mirrow, Low-E Sandblasting Effect and drill |
| Laser | Max Laser | |||||
| Working Size | Width 1200mm* Length 2400mm Or other size | |||||
| Machine Size | 3000*2200*900mm | |||||
| Marking depth | ≤0.1mm | |||||
| Work power | AC 190-240V, 50-60HZ | |||||
| Net weight | 940kg | |||||

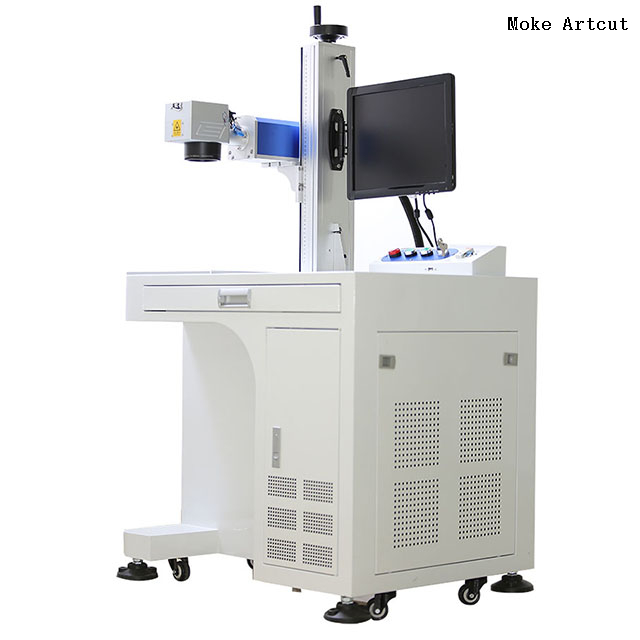

| Model | Mirror Logo Marking | |
| Power | 30 Watt | |
| Laser | Max Laser | |
| Working Size | 200*200mm | |
| Marking depth | ≤0.1mm | |
| Work power | ≤600W |
Processing Effect

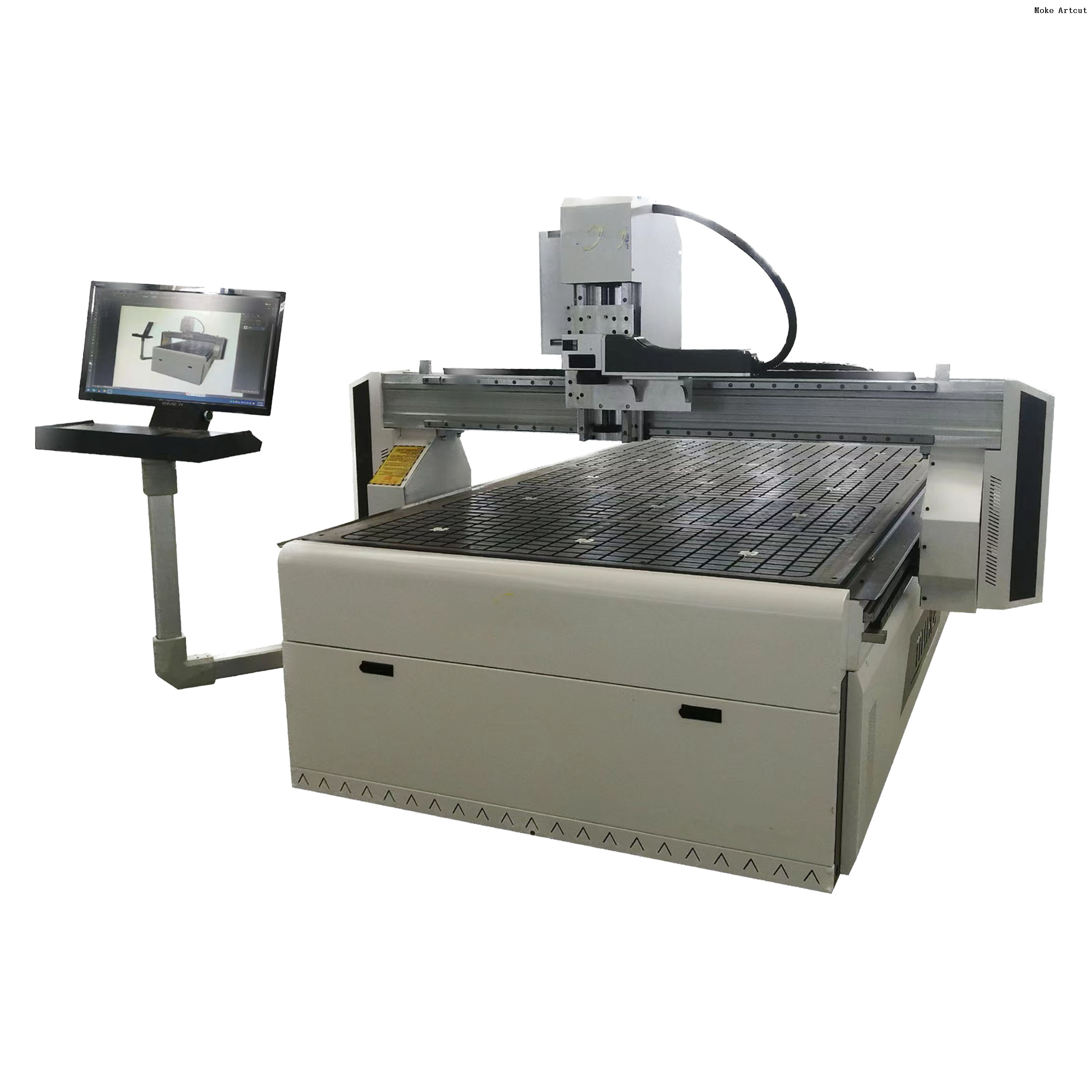

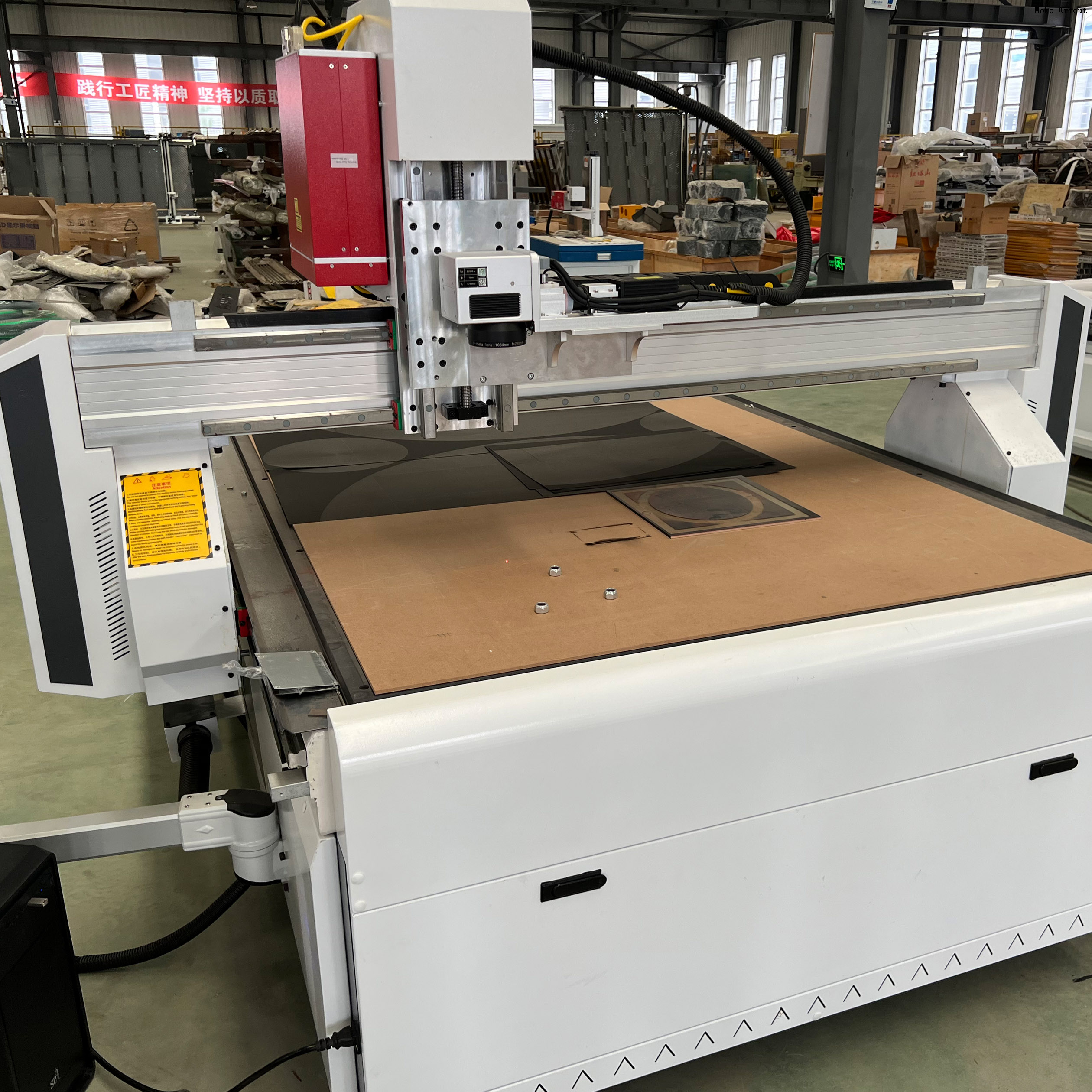

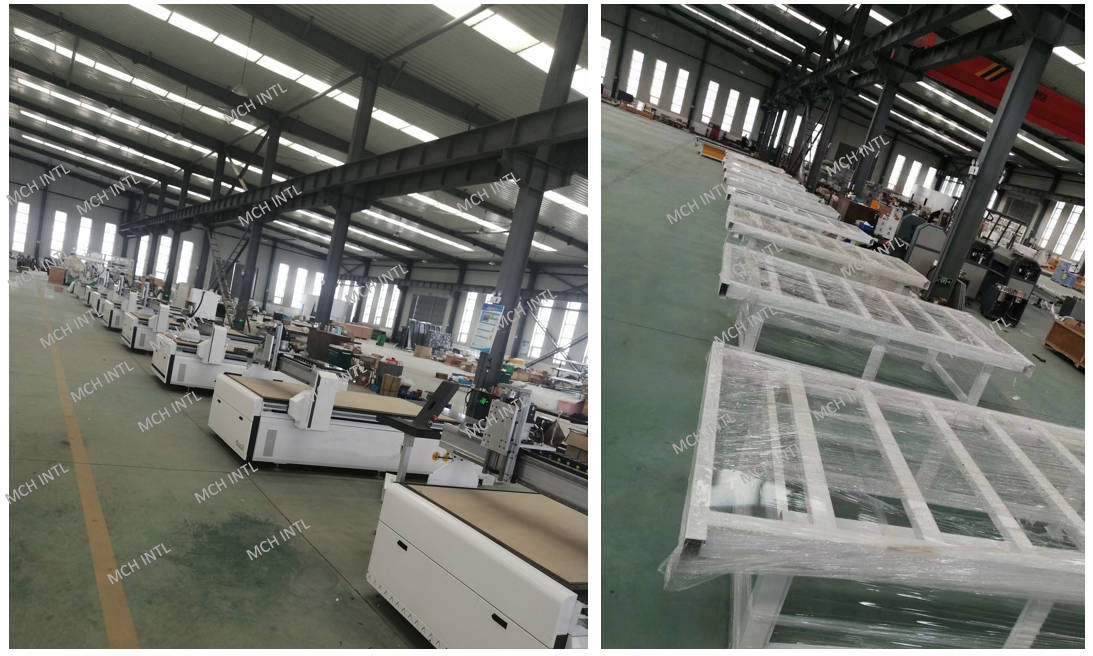

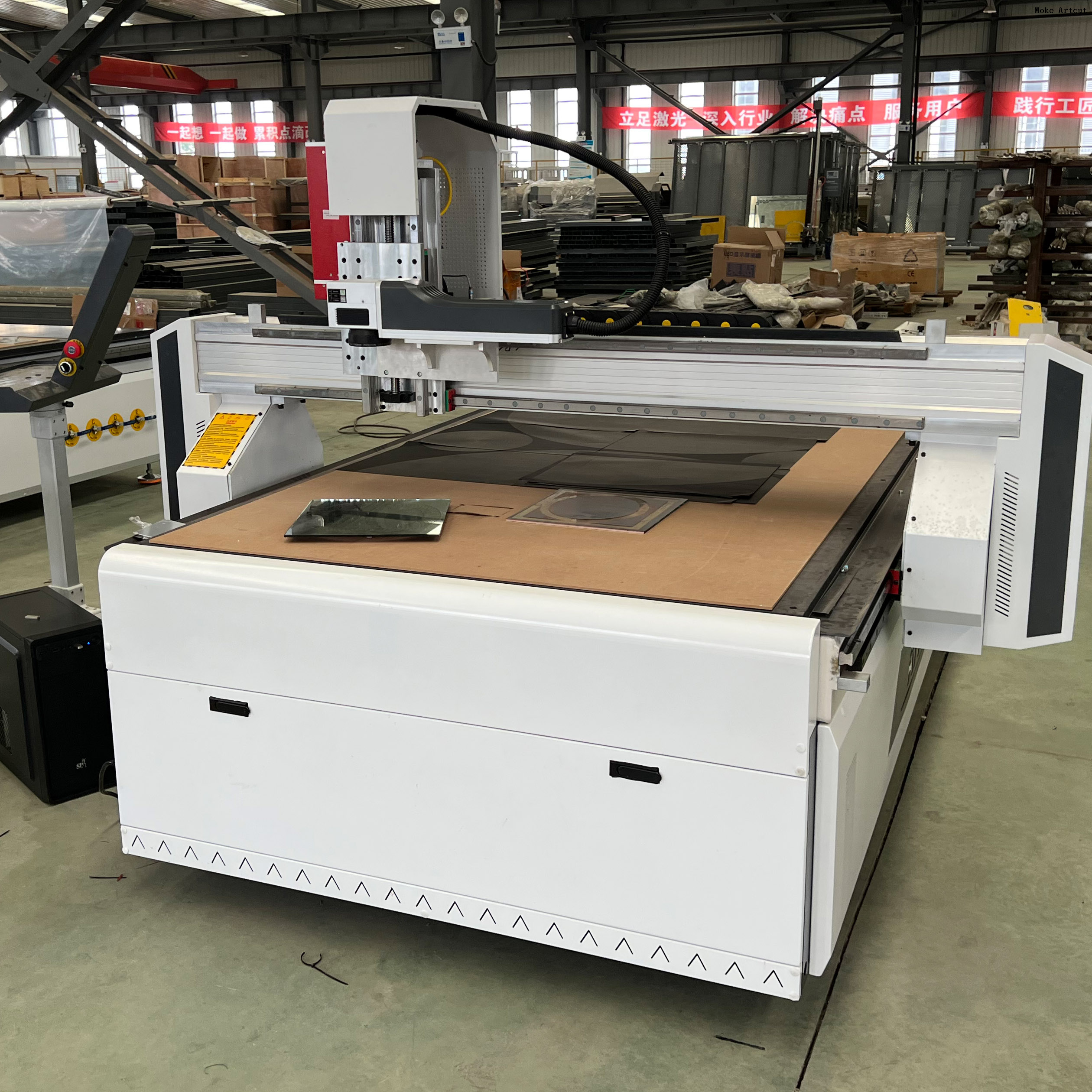

Machine Showing
Questions and Answers
●What maximum size you can provide ?
The regular maximum working size of our machine is 1200*2400mm. We can customize larger size machines according to your requirements.
●The machine is only horizontal or vertical also possible ?
The machine can only be horizontal.
●Whats the tool head life of laser ?
The theoretical life of the laser is at least 10 years.
●What are the spares to be maintained for this machine ?
This machine has no consumable parts, so no spare parts for maintenance.
●If there is any problem how it will be solved ? will you provide online support or your engineers will come to fix the machine?
We have after-sales team and professional technicians, if you have any questions, we provide online service.
Same quality, better price!
Same price, better quality!
Welcome your orders!
