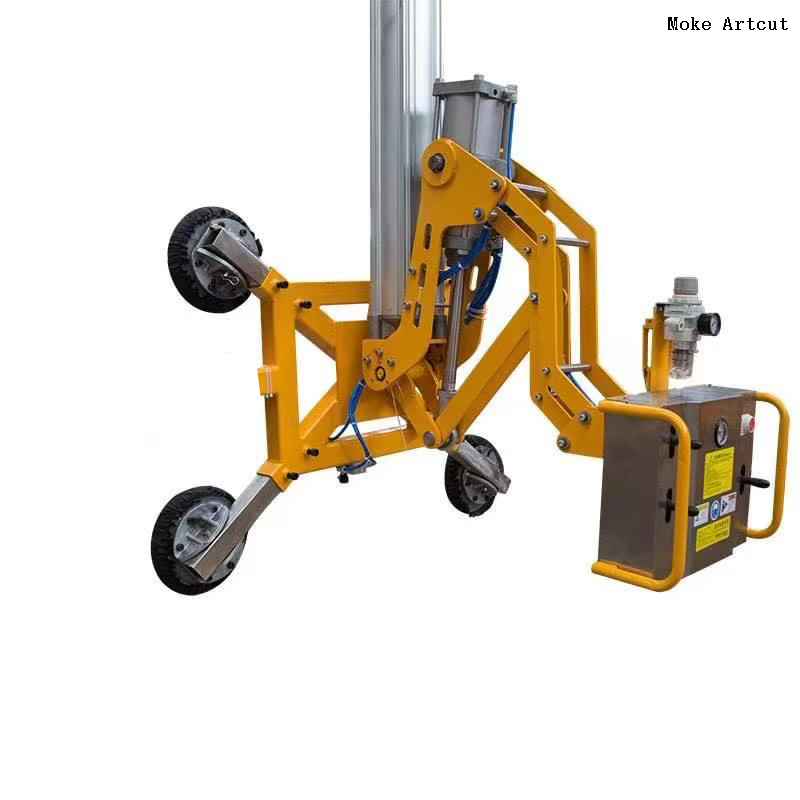

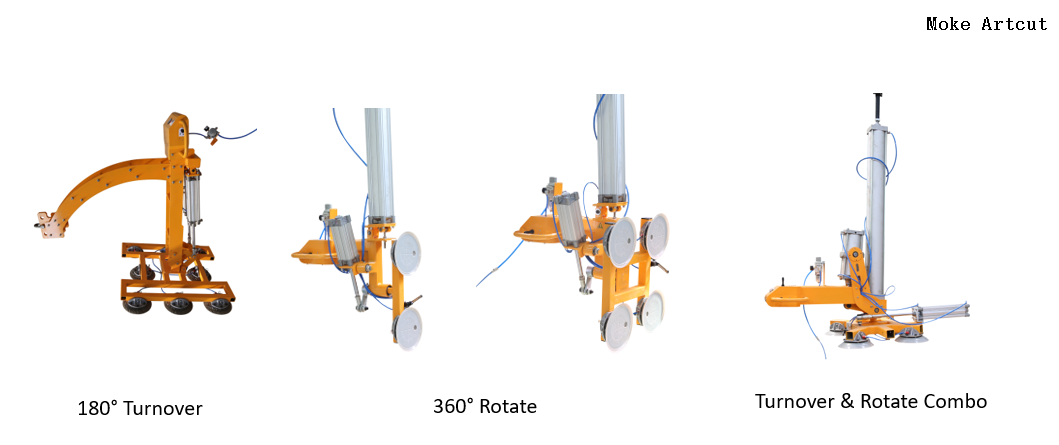

Pneumatic Vacuum Glass Lifter Sucker – Rotation & Turn Over

350-500 kg safe working load. Japan SMC for the lifting air cylinder, vacuum generator, one-way valve, vacuum manometer, air cleaner, etc. Extension arms for different configurations. Imported vacuum pads with temperature resistance -20 degree to 90 degree

Availability:

Quantity:



Inquire Add to Basket

Product Description

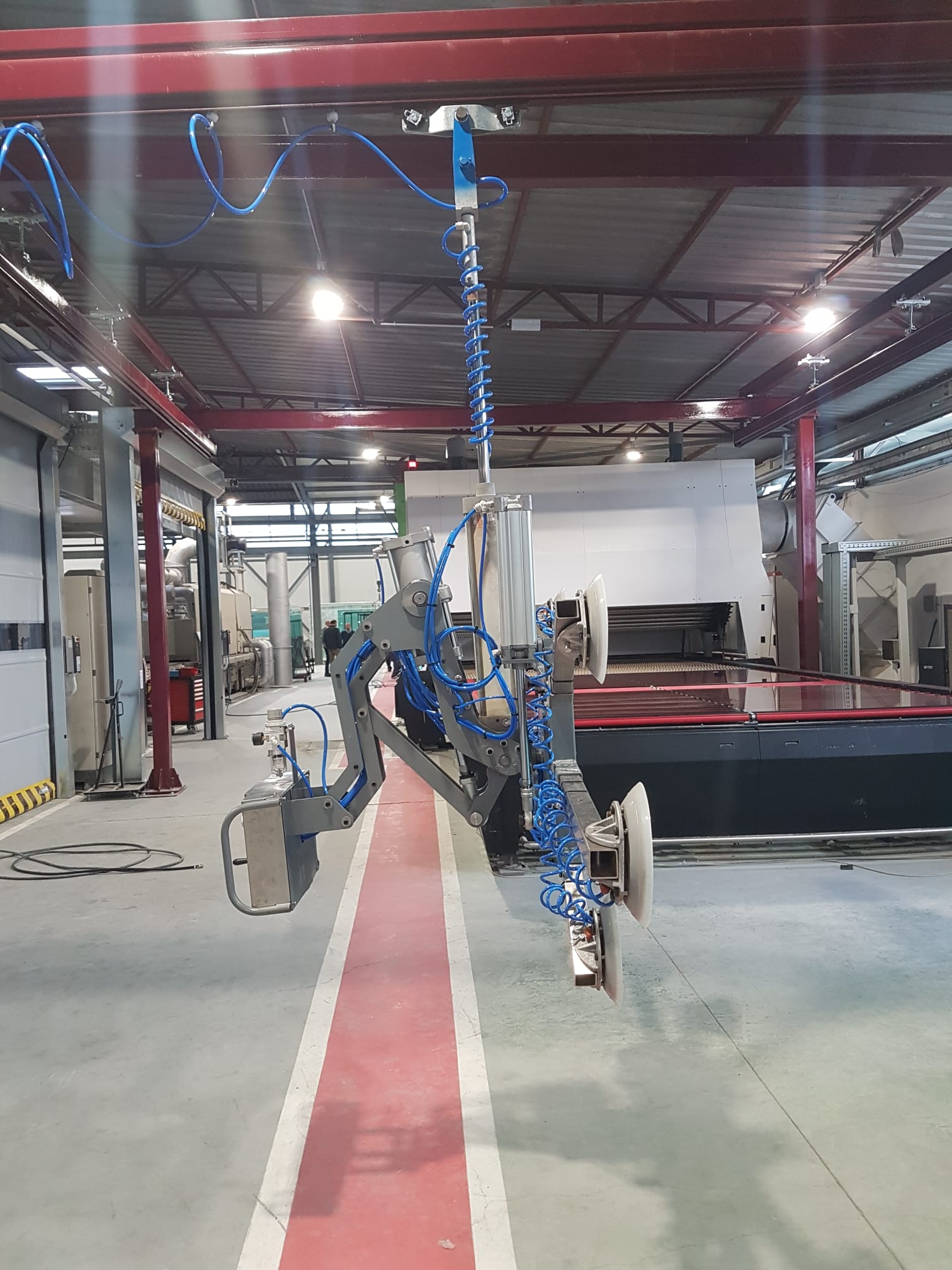

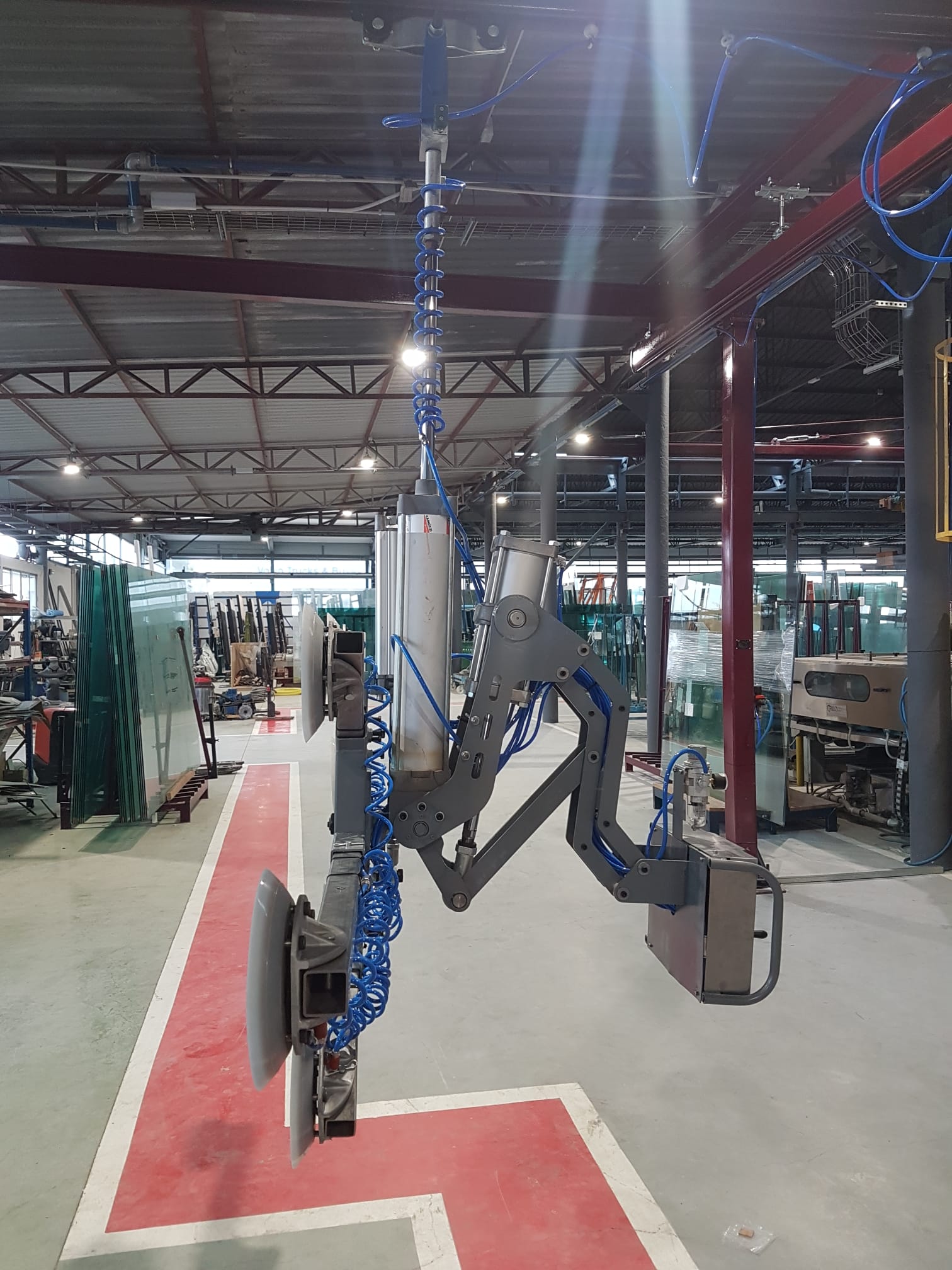

Pneumatic Vacuum Glass Lifter

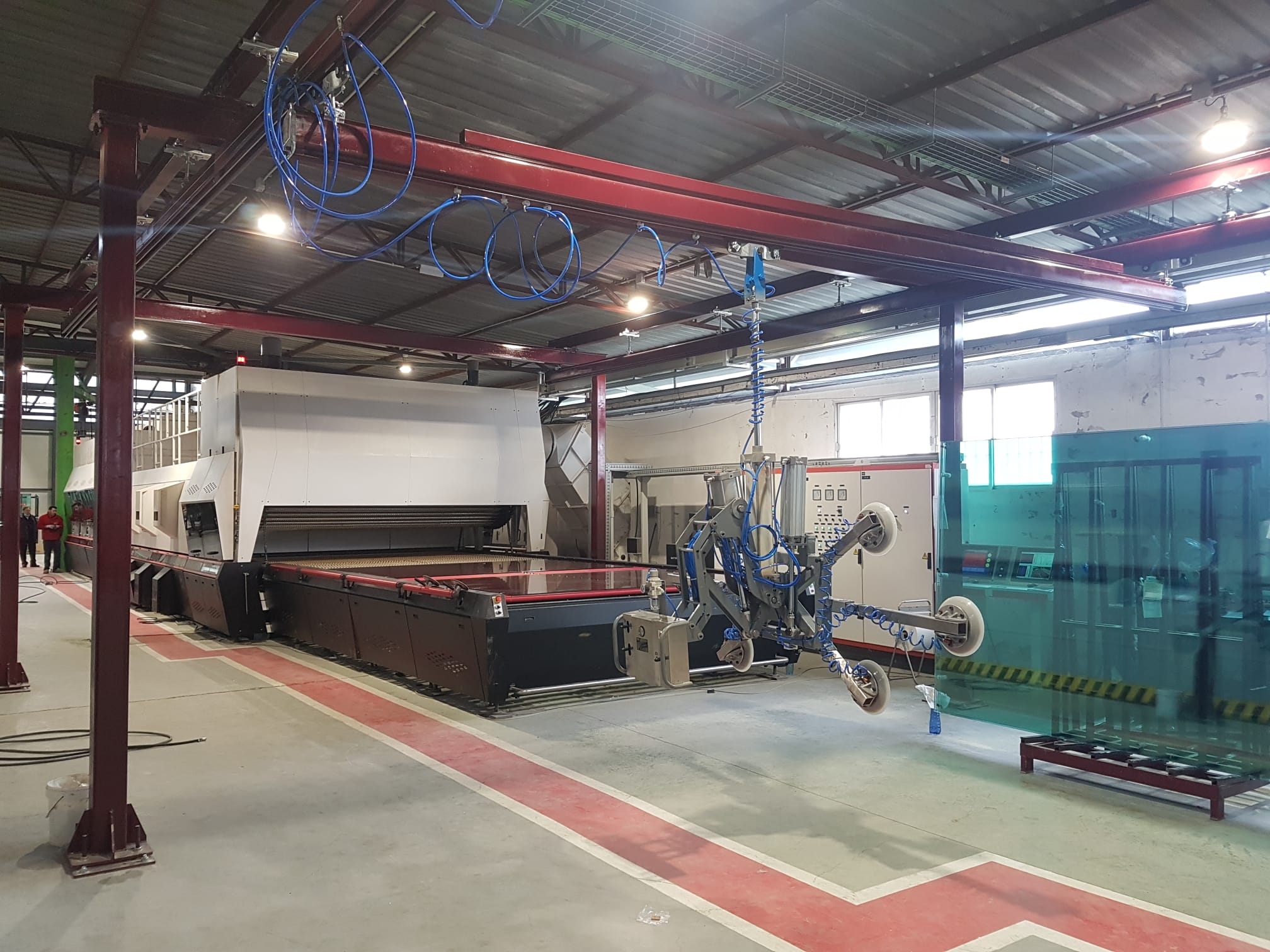

Vacuum glass lifters have become widely used for lifting glass sheet in the factory and glass wall installation in outdoor.

Safety and efficiency are two of the main reasons for using vacuum glass lifters. Not only does this equipment allow for a reduction in the number of personnel required to move piping, it minimizes the risk or injury to ground personnel. Glasses are moved safely and stacked without extra personnel in the in unloading area.

Our vacuum glass lifters are used Thomas brand (the United States) as the vacuum pump and Japan SMC as the control system of the electrical component, the vacuum pads are imported and made by the special silicones, it features with no crack at -20 degrees and high temperature resistance of 90 degrees.

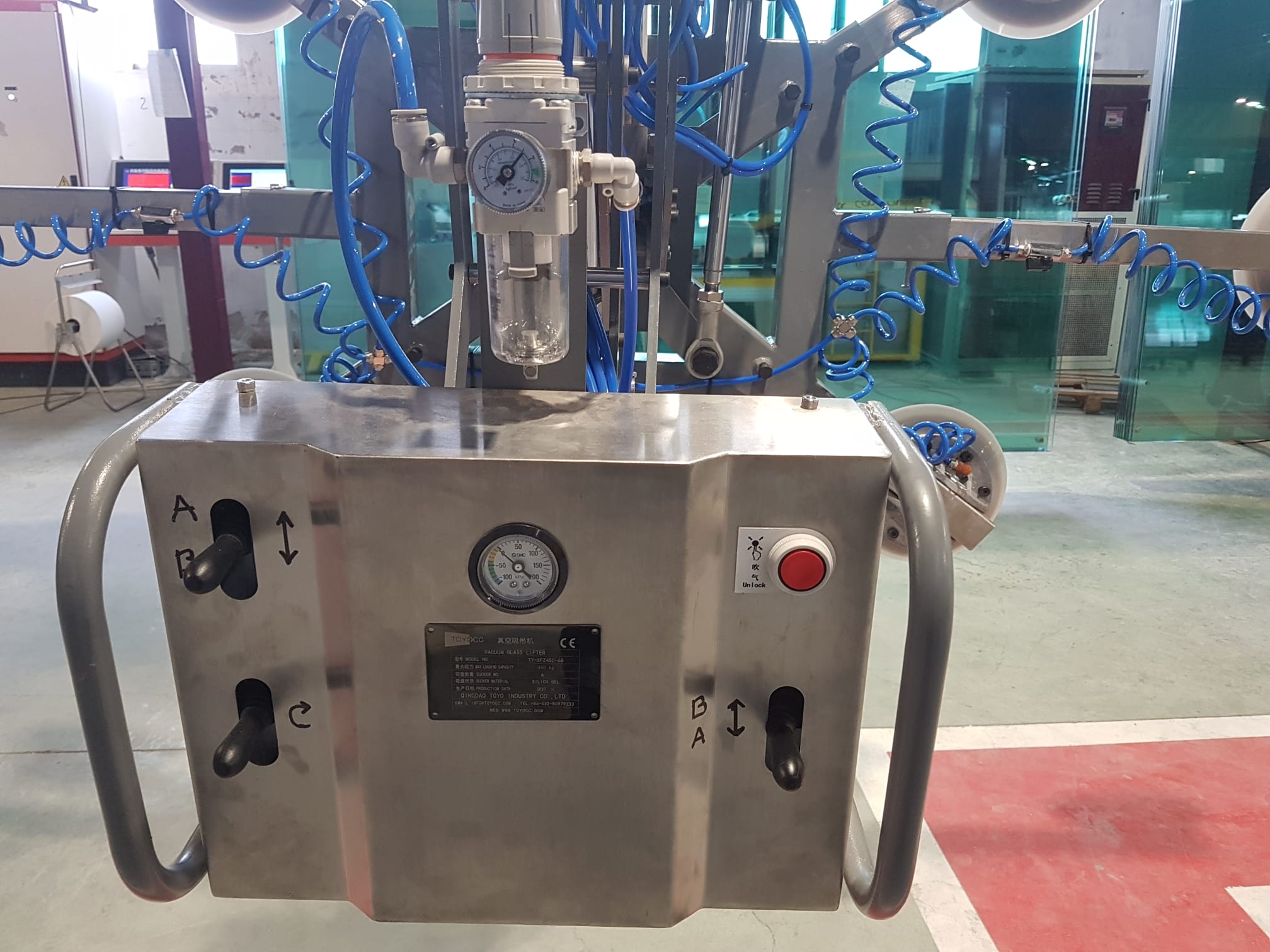

When the equipment is suddenly cut off or the air pipe bursts, the control system will automatically lock the vacuum to ensure that the glass will not fall for 10-15 minutes.

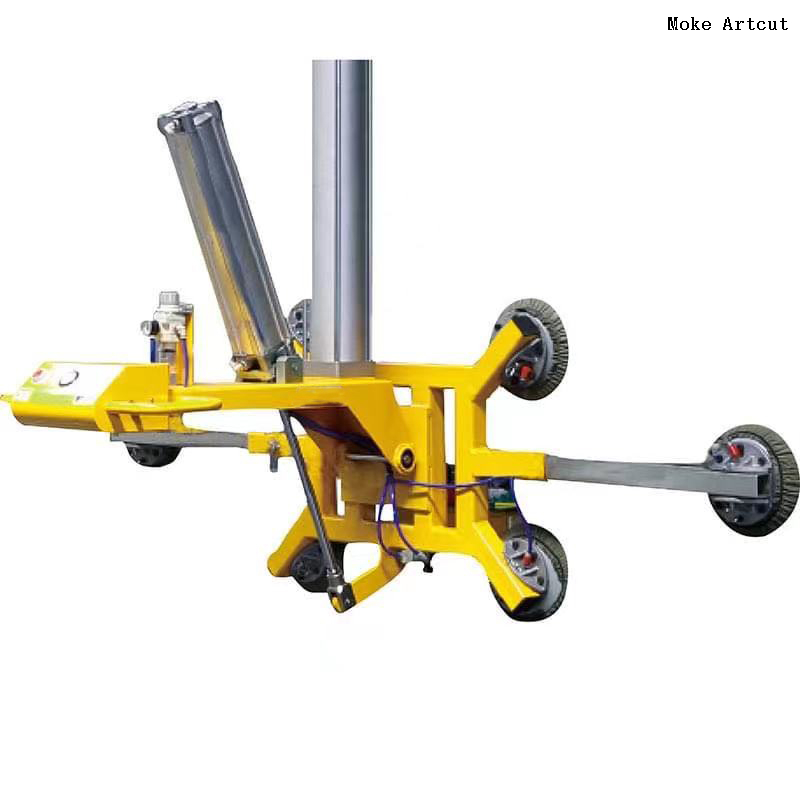

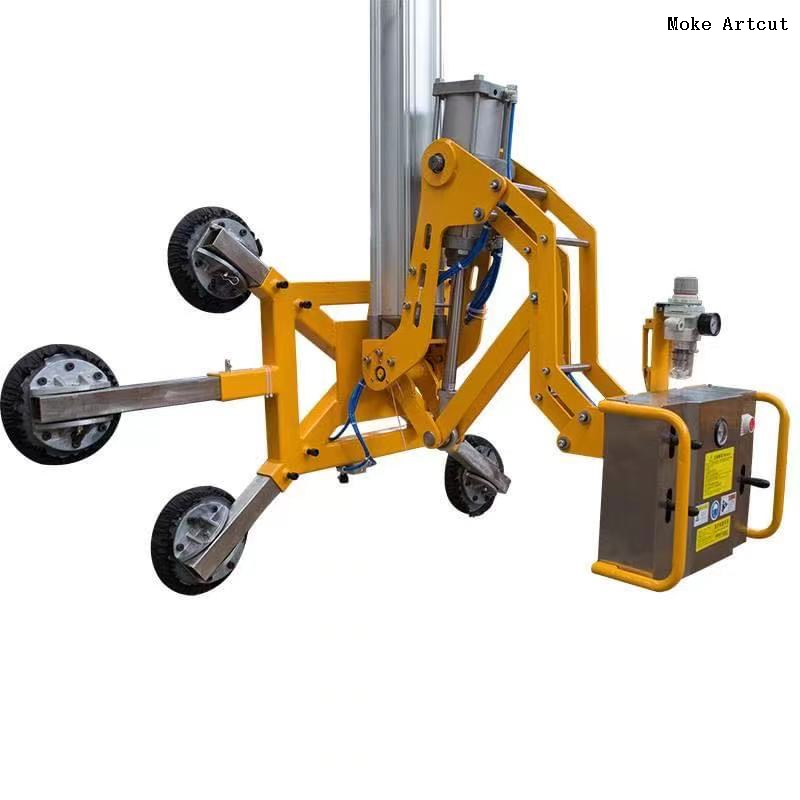

Vacuum Glass Sucker

Specifications

Pneumatic Vacuum Glass Lifter
	Vacuum Lifter	6-pads
	Vetical Lifting Distance	1200mm
	Lifter Loading Capactiy	450 kg(s)
	Lifter Tilting & Rotation	90°
	Glass lifter Vertical Range	1.2m
	Glass Max Titling Size	2.4*3.6m
	Glass Max Rotation Size	2.4*2.4m
