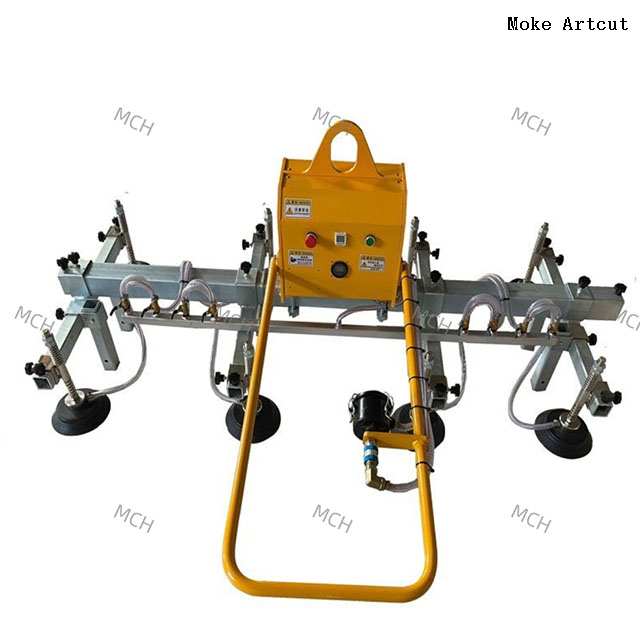

The device is suitable for loading and unloading various processing machines, such as laser cutting machines, plasma cutting machines, and shearing machines. It is suitable for plates with flat surfaces such as aluminum plates, stainless steel plates, titanium plates, and composite plates. The load ranges from 500kg to 2000kg and can be customized according to customer needs. The equipment is energy-saving and environment-friendly, easy to operate, and high in work efficiency.
• The position of the suction cup can be adjusted, and each suction cup is equipped with a manual control ball valve, which is convenient for operating plates of different sizes
• The suction cup rod has upper and lower double springs. When the plate is uneven, the spring acts as a buffer, which can make the suction cup evenly stressed, thereby ensuring the safety and reliability of the suction cup.
• The end of the main beam is welded and sealed with a flat plate, which is used as a vacuum storage tank. When the equipment is suddenly closed, it can ensure that it continues to absorb the plate for at least 20 minutes without falling off. The Panasonic vacuum pressure switch is equipped with a high-sensitivity buzzer alarm unit. When the set pressure is unreached, the yellow indicator light will light up and the buzzer will sound to remind the operator.
Specifications
Vacuum Lifter For Metal Plate | ||||
Loading Capacity | 500kg | 600kg | 800kg | 1000kg |
Vacuum Pad Quantity | 6 pcs | 6 pcs | 8 pcs | 8 pcs |
Frame Size | 2000*800mm | |||
Upgrade Frame Size | 3000*800mm | |||
Vacuum Cup Diameter | 210mm | |||
Voltage | 12V12Ah Battery/380V AC | |||
Configuration
1. Industrial 380V high-flow boutique joint venture brand vacuum pump with strong power and stable performance.
2. The imported vacuum start-stop meter has set a safe range of vacuum degrees to realize low-pressure intelligent air supply and add insurance to safe operation.
3. The main beam has a super large air cavity, which can store a large amount of vacuum and is safer.
4. Imported one-way valve to ensure no air leakage.
5. The square tube is made of Q345 material, with high strength and elasticity, and will not deform under heavy load.
6. Imported material suction cup, equipped with two sets of upper and lower double springs for decompression and shock absorption, relieves impact force and easily absorbs uneven plates.
7. The main beam and supporting beam adopts the galvanized process, which is corrosion-resistant and does not rust.
8. The control box adopts a high-temperature plastic spraying process, and the paint surface is bright and beautiful without sag.
9. Equipped with four more galvanized support legs, convenient for debugging and mobile storage.

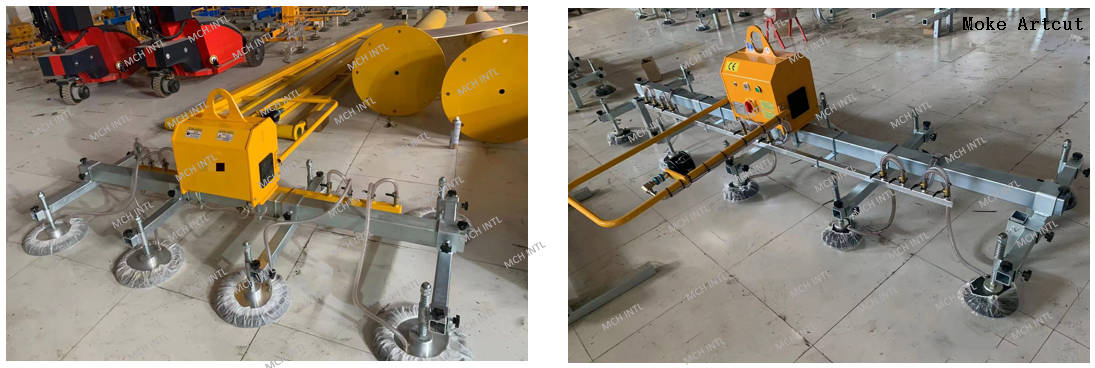

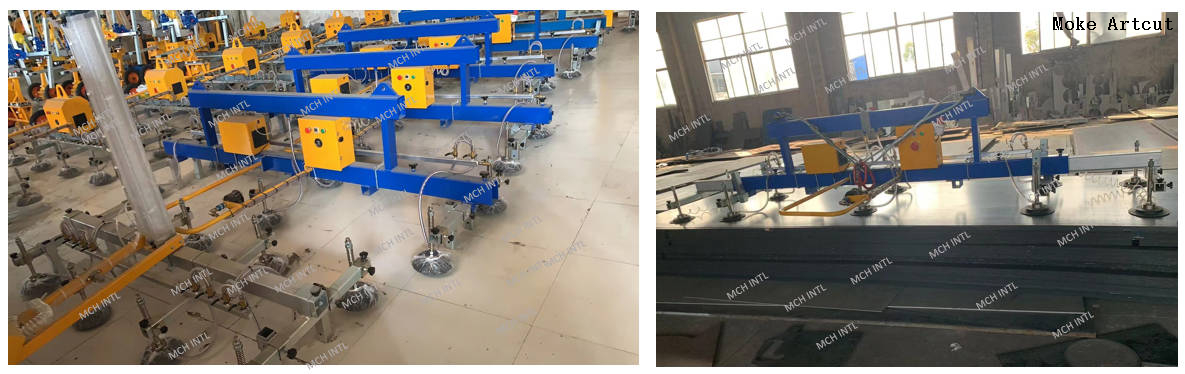

Machine Pictures
Delivery Pictures
Same quality, better price!
Same price, better quality!
Welcome your orders!
